28-400 Black Ribbed Trigger Sprayer VS-100 Spray/Stream/Off (9.25" Diptube, 0.8cc Output)

SKU: TS1713-MD In Stock
Sale price$0.38

Need a large volume? Call (208) 550-3393 or request a quote.


Single unit or full cases · 500 units/case

Total: $0.38

Description

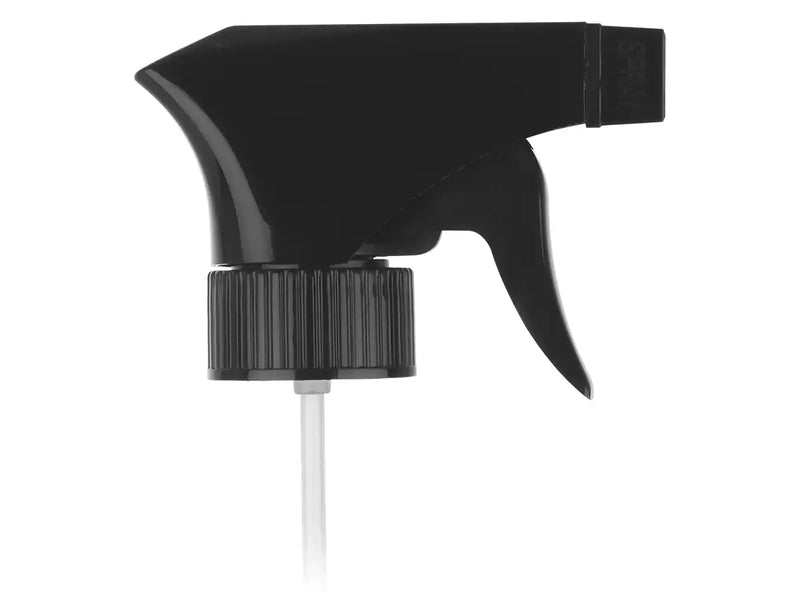

This 28-400 black ribbed trigger sprayer is the VS-100 model. Pull the trigger to dispense and turn the nozzle to choose a cone-shaped spray, a stream, or off.

Each pull outputs about 0.8cc. The 9.25-inch dip tube is sized for larger bottles and can be trimmed to fit.

Features

  • Size: 28mm diameter with a 400 neck finish
  • Style: Ribbed, VS-100 trigger
  • Nozzle: Spray, stream, and off settings
  • Output: 0.8cc per stroke
  • Dip Tube: 9.25 inches
  • Color: Black
  • Compatibility: Fits glass and plastic bottles with a 28-400 neck finish

Ideal For
Cleaners, chemical sprays, pet care sprays, hair products, and detailing sprays. Suited to household, cleaning, pet care, and personal care brands.

Tip: Confirm a 28-400 neck finish; this sprayer will not fit 28-410 finishes. Trim the dip tube so it sits just above the bottom of your bottle.

Product Details

Finish28-400
Case pack500 units
ColorBlack
MaterialPP (polypropylene)
Recycling code #5 PP
Dip tube length9.25" How to measure
Spec sheetView file

Payment & Security

Ach Direct Debit Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay USDC Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Material at a glance

PP · Polypropylene

Plastic Guide

Strong and durable, and the most heat-resistant of the common packaging plastics.

Maximum temperature

Heat resistance
High, up to 275°F (hot fill and dishwasher)
Durability
Strong; makes durable flip-top hinges
Chemical resistance
Good with acids, bases and alcohols
Color
Translucent, opaque or any color

Great for

  • Hot-filled and dishwasher-safe products
  • Caps, closures and jars

Avoid

  • Heat above 275°F
  • Freezing temperatures (can turn brittle)

General material information. Always test compatibility with your product; free samples are available ($10 shipping).

Dip tube at a glance

9.25" dip tube

Dip Tube Guide

Measured from the underside of the closure, where it rests on the bottle rim, straight down to the tip of the tube.

Dip tube length
9.25"
Bottle inside depth
About 9.38"–9.5" (tube 1/8"–1/4" shorter than the bottle)
Neck finish
28-400
Too long?
Plastic tube; trim to length with a slight angle on the cut

Great for

  • Bottles with an inside depth of about 9.38" to 9.5"
  • Deeper bottles, if a little product left at the bottom is acceptable

Avoid

  • Bottles shallower than 9.25" inside, unless you trim the tube (a long tube kinks and the pump won't seat)

Tip: Measure your bottle from the top of the neck to the inside of the base, then choose a tube 1/8" to 1/4" shorter.

General guidance based on industry recommendations. Always test the fit with a free sample ($10 shipping) before ordering.
