28-400 White Trigger Sprayer Spray/Stream/Off (9.875" Dip Tube, .9cc Output) TS-800 Ergo

SKU: TS143 In Stock
Sale price$0.34

Need a large volume? Call (208) 550-3393 or request a quote.


300 units/case

Total: $0.34

Description

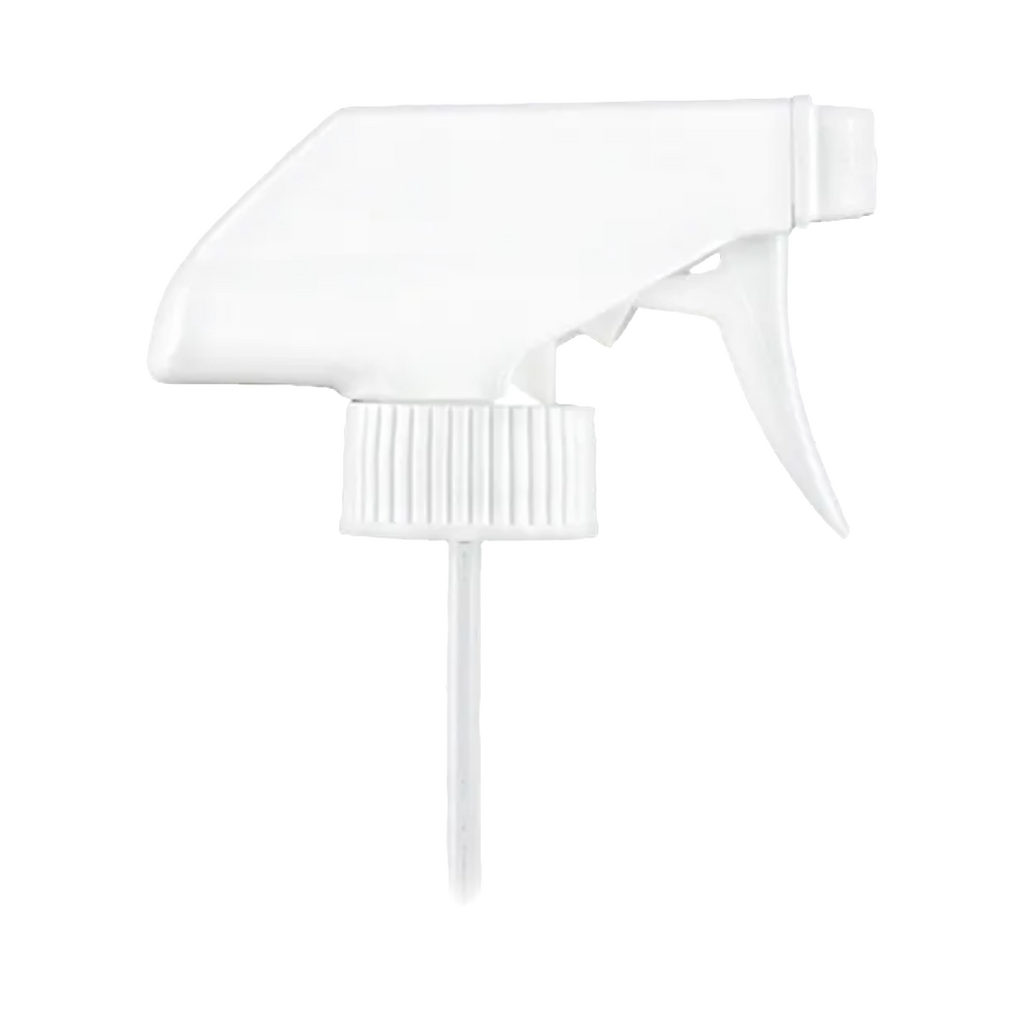

This 28-400 white trigger sprayer gives you three settings in one head: spray, stream, and off. The TS-800 Ergo design offers a comfortable trigger for repeated use, and the white finish pairs cleanly with most spray bottles and labels.

Each pull delivers about .9cc of product, and the 9.875-inch dip tube draws from deep in taller bottles. The sprayer uses a stainless steel ball in its mechanism, and the off position helps prevent accidental discharge in storage.

Features

  • Size: 28mm diameter with a 400 neck finish
  • Style: TS-800 Ergo trigger sprayer
  • Nozzle: Spray, stream, and off settings
  • Output: .9cc per stroke
  • Dip Tube: 9.875 inch
  • Color: White
  • Compatibility: Fits bottles with a 28-400 neck finish

Ideal For
All-purpose cleaners, glass cleaners, plant and garden sprays, detailing sprays, and pet care sprays. A good fit for household, cleaning, automotive, and garden brands using 16 to 32 oz spray bottles.

Tip: Confirm your bottle has a 28-400 neck finish, since this sprayer will not properly fit 28-410 finishes. Trim the dip tube to sit just above the bottom of your bottle so it draws evenly without curling.

Product Details

Finish28-400
Case pack300 units
ColorWhite
MaterialPP (polypropylene)
Recycling code #5 PP
Dip tube length9.875" How to measure

Payment & Security

Ach Direct Debit Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay USDC Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Material at a glance

PP · Polypropylene

Plastic Guide

Strong and durable, and the most heat-resistant of the common packaging plastics.

Maximum temperature

Heat resistance
High, up to 275°F (hot fill and dishwasher)
Durability
Strong; makes durable flip-top hinges
Chemical resistance
Good with acids, bases and alcohols
Color
Translucent, opaque or any color

Great for

  • Hot-filled and dishwasher-safe products
  • Caps, closures and jars

Avoid

  • Heat above 275°F
  • Freezing temperatures (can turn brittle)

General material information. Always test compatibility with your product; free samples are available ($10 shipping).

Dip tube at a glance

9.875" dip tube

Dip Tube Guide

Measured from the underside of the closure, where it rests on the bottle rim, straight down to the tip of the tube.

Dip tube length
9.875"
Bottle inside depth
About 10.0"–10.13" (tube 1/8"–1/4" shorter than the bottle)
Neck finish
28-400
Too long?
Plastic tube; trim to length with a slight angle on the cut

Great for

  • Bottles with an inside depth of about 10.0" to 10.13"
  • Deeper bottles, if a little product left at the bottom is acceptable

Avoid

  • Bottles shallower than 9.875" inside, unless you trim the tube (a long tube kinks and the pump won't seat)

Tip: Measure your bottle from the top of the neck to the inside of the base, then choose a tube 1/8" to 1/4" shorter.

General guidance based on industry recommendations. Always test the fit with a free sample ($10 shipping) before ordering.
